PR1000K0141
Piezohannas
PR1000K0141
Piezoceramic Ring Piezoelektrische Kristalle Arten von Piezo -Keramikwandlern
1.Produkt Beschreibung
Piezo-Material: P-82
Abmessungen: OD50*ID20*6mm
FS (Hz): 33292
FP (Hz): 35720
K31: 0,362
ft (kHz): 337.2
C (PF): 2460
tgδ （%）: 0,2
Piezo -Keramikring
Außendurchmesser: 5,0 - 100 mm
Innendurchmesser: (2,0 - 35 mm)
Dicke: (0,2 - 15 mm)
Auswahl der Metallisation (Silber, Nickel, Gold und andere auf Anfrage)
Breite Auswahl der PZT -Formulierungen
Dimension (mm) | Kapazität C (PF) | Radial Frequenz FR (KHz) | Resonanz Impedanz | Dick Frequenz Ft (khz) | Kupplung Modul KR (%) | Qualität Faktor QM |
Φ4× φ2×2.5 | 60±12,5% | 622±5% | <300 | |||
Φ8ｘΦ3ｘ1 | 850±5% | 188±2% | ≤10 | |||
240±10% | 153±5% | ≤15 | 1020 | ≥45 | ≥800 | |
Φ12ｘΦ5ｘ1 | 1170±fünfzehn% | 130±6% | ≤5.7 | |||
Φ13.5ｘΦ7ｘ1.2 | 2000±fünfzehn% | 1,7 MHz | ≤75 | |||
Φ15ｘΦ6.5ｘ5 | 0,269nf±10% | 410±2% | ≤15 | |||
Φ15ｘΦ7ｘ4 | 316 ±12,5% | 102 ±1KHz | ||||
Φ15ｘΦ8.5ｘ0.7 | 2100±fünfzehn% | 91±3kHz | ≤12 | |||
Φ16ｘΦ7ｘ2.5 | 899±20% | 90±5% | ＜20 | 870 ±5% | ||
340±10% | 95.8±5% | ≤20 | 512 | ≥45 | ≥800 | |
Φ18xΦ12x1.2 | 2000±15 | 1,8 MHz±5% | ≤75 | |||
Φ20xΦ10x4 | 480±12,5% | 75 ±5% | ||||
1000±12,5% | 50 ±3kHz | |||||
Φ22xΦ8.1x6 | 530±20% | 77±3 kHz | ≤25 | |||
Φ24ｘΦ7ｘ3 | 1500±12,5% | 75±5% | ||||
Φ24ｘΦ12ｘ8 | 550±fünfzehn% | 60±3 kHz | ≤25 | |||
935±10% | 65.5±5% | ≤15 | 512 | ≥45 | ≥800 | |
Φ28ｘΦ9ｘ1 | 6650±fünfzehn% | 2,08 MHz±5% | ≤3 | |||
Φ28ｘΦ9ｘ6 | 800±fünfzehn% | 190±5 kHz | ||||
Φ28ｘΦ9ｘ0.3 | 22000±fünfzehn% | 6,8 MHz±5% | ≤1.5 | |||
1150±10% | 58.4±5% | ≤15 | 410 | ≥45 | ≥800 | |
Φ30ｘΦ10ｘ6 | 990±fünfzehn% | 59±5% | ≤16 | |||
Φ32ｘΦ15ｘ5 | 1080±10% | 49.2±5% | ≤15 | 410 | ≥45 | ≥800 |
Φ35ｘΦ15ｘ5 | 1430±10% | 45.5±5% | ≤15 | 410 | ≥45 | ≥800 |
Φ38ｘΦ12.7ｘ6.3 | 2000±20% | 44±3 kHz | ≤20 | |||
1750±10% | 43.4±5% | ≤15 | 410 | ≥46 | ≥800 | |
Φ40× φ12×5 | 2070±12.5% | 45.9 | ≤15 | ≥46 | ≥800 | |
Φ40ｘΦ15ｘ5 | 1970±10% | 42.8±5% | ≤15 | 410 | ≥45 | ≥800 |
Φ40× φ20×5 | 1700±12,5% | 37.9 | ≤15 | ≥45 | ≥800 | |
Φ40× φ17×6 | 1555±12,5% | 40.5 | ≤15 | ≥45 | ≥800 | |
Φ42ｘΦ15ｘ5 | 2200±10% | 40±5% | ≤15 | 410 | ≥45 | ≥800 |
Φ42ｘΦ17ｘ5 | 2110±10% | 38.8±5% | ≤15 | 410 | ≥45 | ≥800 |
Φ45ｘΦ15ｘ5 | 2580±10% | 38.1±5% | ≤15 | 410 | ≥46 | ≥800 |
Φ50ｘΦ17ｘ5 | 3160±10% | 34.8±5% | ≤15 | 410 | ≥45 | ≥800 |
Φ50ｘΦ17ｘ6 | 2430±10% | 34.8±5% | ≤15 | 315 | ≥45 | ≥800 |
Φ50× φ20×5 | 2700±12,5% | 33±2kHz | ||||
2490±12,5% | 33.2 | ≤15 | ≥45 | ≥800 | ||
Φ50× φ30×13 | 1350±5% | 200±2 kHz | ≤4 | |||
Φ50× φ27×6 | 2100±12,5% | 29.3 | ≤15 | ≥45 | ≥800 | |
1922±12,5% | 25.3 | ≤15 | ≥45 | ≥800 | ||
Φ60× φ50×2 | 128±10% | 1MHz±5% | ≤10 | |||
Φ63.5× φ50.8×12.7 | 1000 | 127 kHz |
3.Typischer Wert von \"hard \" PZT -Materialleistung:
Harte \"PZT -Materialien | |||||||
Eigenschaften | PZT-41 | PZT-42 | PZT-43 | PZT-82 | PBAS-4 | ||
Dielektrizitätskonstante | ɛTR3 | 1050 | 1250 | 1420 | 1100 | 1900 | |
Kupplungsfaktor | KP | 0.58 | 0.58 | 0.58 | 0.52 | 0.59 | |
K31 | 0.32 | 0.33 | 0.34 | 0.3 | 0.34 | ||
K33 | 0.66 | 0.67 | 0.68 | 0.57 | 0.68 | ||
Kt | 0.48 | 0.48 | 0.48 | 0.4 | 0.49 | ||
Piezoelektrikkoeffizient | D31 | 10-12m/v | -106 | -124 | -138 | -100 | -160 |
D33 | 10-12m/v | 260 | 280 | 300 | 240 | 380 | |
G31 | 10-3vm/n | -11.4 | -11.2 | -11 | -10.3 | -9.5 | |
G33 | 10-3vm/n | 28 | 25.3 | 24 | 25 | 22.6 | |
Frequenzkoeffizienten | Np | 2280 | 2200 | 2160 | 2280 | 2200 | |
N1 | 1671 | 1613 | 1583 | 1671 | 1613 | ||
N3 | 1950 | 1900 | 1875 | 1950 | 1850 | ||
Nt | 2250 | 2200 | 2200 | 2300 | 2200 | ||
Elastischer Konformitätskoeffizient | Se11 | 10-12m2/n | 11.8 | 12.7 | 13.2 | 11.6 | 13.2 |
Machanischer Qualitätsfaktor | QM | 1000 | 800 | 600 | 1200 | 2200 | |
Dielektrischer Verlustfaktor | Tg δ | % | 0.3 | 0.4 | 0.5 | 0.3 | 0.5 |
Dichte | ρ | g/cm3 | 7.5 | 7.5 | 7.5 | 7.6 | 7.5 |
Curie -Temperatur | TC | ° C | 320 | 320 | 320 | 310 | 310 |
Elastizitätsmodul | YE11 | <109N/m3 | 85 | 79 | 76 | 86 | 76 |
Giftverhältnis | 0.3 | 0.3 | 0.3 | 0.3 | 0.33 |

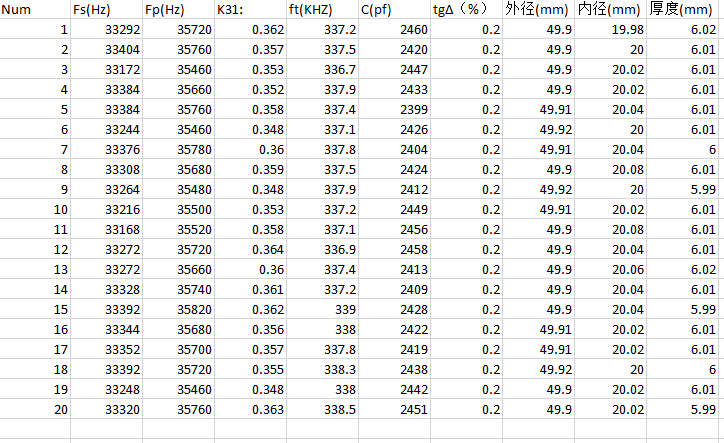

Testbericht von Ø50 × Ø20 × 6 Piezo -Ring
4. Abbildung:
